Investing in an industrial-grade fully automatic soap making machine requires alignment between your facility's target hourly throughput and localized market specifications. Backed by over two decades of mechanical engineering expertise, our manufacturing plant provides highly custom, turn-key processing systems that scale smoothly alongside your business growth. We engineered our structural layouts to adapt effortlessly to varying bar weights, custom embossing requirements, and distinct formulation bases.
Whether your expansion project demands a conservative entry capacity of 100 kg/h, high-volume outputs exceeding 1,000 kg/h, or specialized multi-stage components, we customize the operational line to deliver immediate market readiness.
Machine Output Selection & Technical Parameters
To help you choose the ideal configuration for your facility, our standard fully automatic soap making machine lines are divided into three high-performance categories based on screw diameter and capacity:
| Machine Model | Rated Output Capacity | Main Screw Diameter | Specialized Downstream Equipment |
| JHY-300 | 300 - 500 kg/hour | 160 mm | Automated Stamping Line (Optimized for Toilet/Bathing Soaps) |
| JHY-500 | 500 - 800 kg/hour | 200 mm | Multi-Blade Cutting System (Optimized for Laundry/Washing Soaps) |
| JHY-1000 | 800 - 1,000+ kg/hour | 300 mm | Heavy-Duty Universal Stamping & Extrusion Setups |

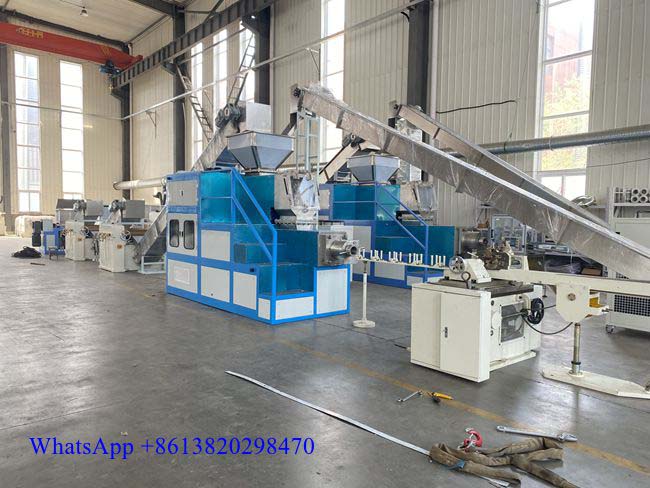

Step-by-Step Production Cost & Core Processing Flow
Our fully automated manufacturing infrastructure optimizes utility usage and limits material waste across every essential production segment:
1. Homogeneous Agitation: The raw soap noodles and active ingredients are thoroughly blended within an industrial mixer to establish a flawless chemical foundation.
2. Micro-Refinement Milling: A heavy-duty three-roll mill finely grinds and shears the materials into thin flakes, dramatically increasing the final bar's density.
3. Vacuum Plodding & Extrusion: The secondary dual-stage plodder applies high vacuum pressure to compress the processed soap granules into solid, completely seamless soap logs.
4. Precision Section Cutting: An automated bar cutter slices the continuous extruded mass into perfectly uniform, pre-calibrated blocks.
5. Custom Brand Embossing: High-speed stampers shape the bars to your exact geometric specifications, embedding customized company logos and graphics with crisp, high-definition clarity.
6. Centralized Control System: Industrial PLC distribution boxes regulate the speed and synchronization of all connected machines, while automated conveyors handle the continuous material transport.
Material Customization Note: All critical operational components that come into direct contact with raw materials can be upgraded to high-grade, corrosion-resistant stainless steel based on your specific chemical formulation needs.
What are the facility voltage requirements?
Our standard production lines are wired for 380V at 50Hz. However, our engineering team can fully customize the motors, internal wiring, and distribution setups to match the local industrial voltage standards of your specific country.
Every fully automatic soap making machine line includes a comprehensive one-year warranty and lifelong technical support. Throughout the assembly phase, 5 senior specialized quality inspectors monitor the durability of every internal component, supported by a workforce of over 20 professional technicians.
We provide complete, high-definition instructional videos, detailed blueprints, and step-by-step remote engineering assistance. For large-scale industrial complexes and heavy-duty configurations, we can dispatch senior field engineers internationally to manage on-site installation, line debugging, and staff training.
Soaps manufactured on our automated lines feature an incredibly firm, dense texture that resists cracking even in high-moisture environments. The process ensures a high-density finish with strong decontamination properties, excellent structural solidification, and uniform lathering—all achieved at an incredibly competitive production cost per batch.
