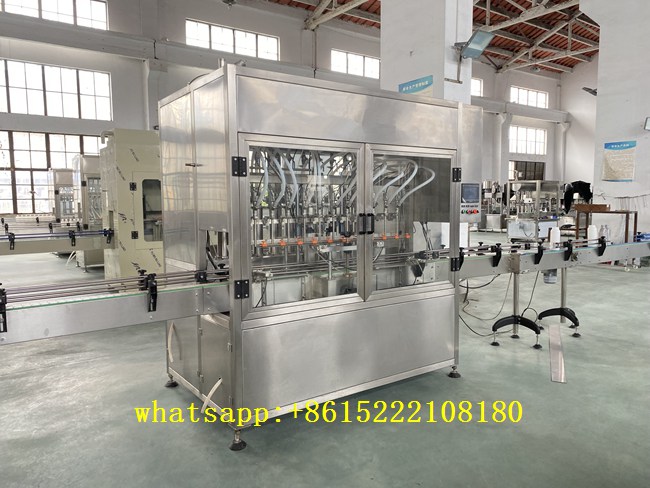

The overall structure of the fully automatic servo piston filler
: product conveyor belt (adjustable), hopper, pneumatic bottle stopping device, servo filling pump, servo filling head, safety polycarbonate shell (optional), electrical panel, motor, PLC, HMI, AC driver, etc.
High and low level sensors in the tank are a special advantage. High viscosity liquid, low viscosity liquid servo piston filling machine is suitable for filling viscous liquids (such as viscous products - tomato paste, jam, juice, vegetables and mineral oil) into glass, plastic, metal or other material containers. Our servo liquid piston filling machines are available for all types of liquids and viscous liquids in bottles of different shapes and sizes.
SUS 316 food grade filling heads ( 2, 4, 8, 12, 16, 20 can be customized)
Well-known electrical components (Protect the stable operation of machine circuits)
Servo Motor (Control the up and down movement of the piston cylinder and filling head)
Servo Piston Filler Machine features ：
1. The machine comes with a built-in storage box that is easy to clean
2. Drain valve under filling tank and collection tray for flushing
3. The filling head has a dive program. The filling head enters the bottle. Once the bottle reaches the required capacity, it will stop filling and come out of the bottle.
4. The filling pump controlled by servo motor can be used to quickly suck the filling material from the storage tank into the nozzle end.
5.Each filling head can work independently
6. For products of different sizes and different filling volumes, there is no need to replace parts.
7. If there is no product during the filling process, the machine will automatically stop and issue instructions on the HMI.
8. After the filling process is completed, if the tank needs to be cleaned, there is no need to dismantle the tank. This cleaning process can be completed very quickly with the help of a drain valve.
10. Since few machine parts are used, less maintenance is required.
